KEKBバンチフィードバックシステム設置速報


Digital camera CASIO QV-7000SX (Economy mode =640x480).

D7直線部ARES空洞横に設置したHER用位置モニター。

Transverse Kickers for LER


Transverse wideband kicker (L=0.4m)

Transverse lowest frequency kicker (L=1.2m)

Feedback monitor for LER


Support for the feedback monitor.

Feedback monitor for LER(1). The chamber also has a taper sectionfrom the inner diameger of 94mm to 64mm.

Transverse kicers for HER


Transverse wideband kicker (L=0.4m)

Transverse lowest frequency kicker (L=1.2m)

Feedback monitor for HER


Feedback monitor chamber for HER (1). It has 20 pickups.

Feedback monitor for HER(2).

Longitudinal kickers for LER


Combining the two longitudinal kickers.

Alignment for the longitudinal kickers.

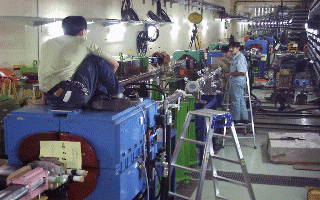

Alignment of the kickers and monitors

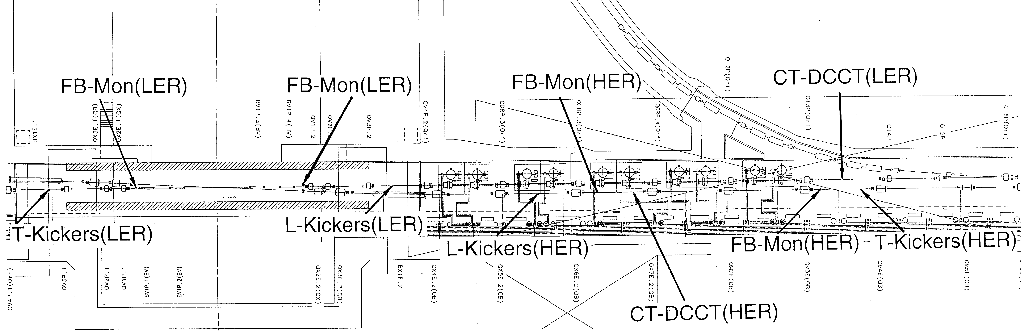

You will see the feedback components on the map!
